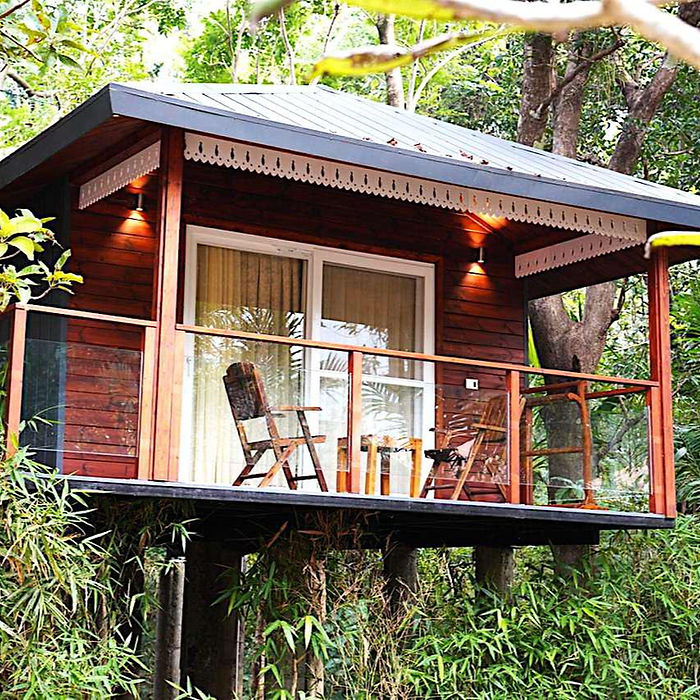

Tree House are cottages that are luxurious enough for the finest resort sites, holiday homes which are also adoptable to serve almost any purpose. a cottage designed to very last details, keeping in mind the requirements of the resort and holiday homes.

Tree House offers a unique stay within this architectural design and artistic interventions for a resort or holiday home that reflects a unique lifestyle. the space is rythemed not only with the Loom Crafts products but also with other design and artistic interventions providing a source of experience and well being for the hosts. it becomes a space nourished by the passage of guests, designers, artists, friends with prospective of a common goal: a return to oneself.

design



specifications



Structure

The entire structure is designed as a Hybrid with Light Gauge Steel framing technology from Australia using the latest CNC controlled machines and mild steel load bearing sections. The structures are designed to withstand high wind upto 180 kmph and seismic zone IV.

Waterproofing Membranes

The entire external surface of the cottage is covered with water proofing membranes and sealed with Aluminium tapes.

Doors & Windows

All internal doors are made of Solid skin doors. External Sliding or fixed Doors / Windows and main doors are made of UPVC sections with 5mm thick toughened glass. Options for DGU and mosquito mesh also available at extra cost. Skylights can be added in the roof without extra cost, skylight blinds also available at extra cost. Our standard UPVC color will be white, Grey or wood finish UPVC available at extra cost.

Foundations

Client needs to provide the RCC foundations as per our drawings. We even have an option of pre-cast foundation system which doesnt need any civil work on site and can be just placed over solid flat surface.

Internal Walls & Ceiling

All the internal walls and ceilings are fixed with gypsum boards over the OSB Boards and painted as per client's choice of color. Pine wood cladding on walls or ceiling will cost Rs 150/- per Sq Ft extra. Bathroom walls are fitted with ceramic tiles of make Kajaria.

Plumbing & Toilet Fixtures

The toilet in the cottage comes complete with all internal pipelines of CPVC or UPVC along with toilet fixtures from Essco- Jaquar such as WC, Washbasin, Faucet etc. The client just needs to connect the water input and waste output at site once the cottage erection is completed. Water storage tanks, pressure pupms, shower glass partitions not included.

Structural Wrapping

The entire steel structure is then wrapped with OSB / MR Grade Plyboards 10mm thickness from the exteriors and interiors. These boards are lightweight but very strong, water & termite resistant.

External Walls & Roof

The External walls are cladded with Everest make wood finish cement fiber planks as standard inclusion. The roof is cladded with Asphalt shingles of make Technonicol with 50 years warranty or LoomClad powder coated metal cladding. Choice of different exterior claddings also available at extra cost.

Electrical Fittings

Complete electrical fittings including Switches, Sockets, Fans, LED lights included. Internal wiring of make R R Kabel, Switch / Sockets of make Legrand, LED lights of make Jaquar, Fans of make Usha. Electronics such as TV, Fridge, AC, Geysers not included and can be fitted by clients themselves. We do provide air-conditioning pipelines inside the walls as per the layouts.

Insulation

All external walls and roof are well insulated with Rock Wool insulation of thickness 100mm and 48Kgs/m3 density, which gives the structure protection from Heat, Cold and sound.

Internal & External Flooring

The floors are fixed with heavy-duty cement fiberboards of 16mm thickness. After which, Common Living room & Bedrooms are fixed with wooden laminate flooring of make Greenpanel with choice of colors to choose from. Toilets are fixed with vitrified tiles of make Kajaria. External decks are fitted with Thermo pine wood, coated with weatherproof oils.

Furniture & Soft Furnishings

No fixed or loose furniture, soft furnishings or decorations included. Kitchen and wardrobes available at extra cost. Bathroom vanities included in case of upgradation from Essco to Jaquar / Kohler.
