You came to a point in your life where you need more than a roof on your head. You need a space of the right size to cover for all your needs and you need to make it happen without relying too much on your bank. This is why we created A frame, a gorgeous a-frame house for a growing family. Here at Loom Crafts, we believe a house should be a launchpad and not an anchor. A house should improve the quality of your life without making you slave of a mortgage.

A shape houses can be built anywhere you want and on any style of foundation, existing or new. They are great for off-grid applications because of the steep roof angle which is perfect for solar panels.

Also, their unique geometry makes them intrinsically energy-efficient.

The large roof area offers a perfect opportunity for the installation of solar panels and the service space behind the walls (in the lower part of the roof) is perfect for housing technical installations, while doubling as storage space.

There is so much you can accomplish when you start your off-grid adventure with a house like the Loom Crafts A shape.

design



real site pics

WhatsApp Image 2021-06-11 at 16.30
WhatsApp Image 2021-06-11 at 16.30
WhatsApp Image 2021-06-11 at 16.30
WhatsApp Image 2021-06-11 at 16.30
WhatsApp Image 2021-06-11 at 16.30
WhatsApp Image 2021-06-11 at 16.30
1/5

specifications



layouts & costings



other designs

"A" Frame

"A" Frame

modAlpine

modAlpine

Alpine Villa

Alpine Villa

concept home

concept home

willow barn

willow barn

barn house

barn house

smart house A1

smart house A1

smart house double A4

smart house double A4

modRoom XL

modRoom XL

modRoom A frame

modRoom A frame

glamping pod- A

glamping pod- A

glamping pod- B

glamping pod- B

glamping pod- C

glamping pod- C

glamping pod- D

glamping pod- D

glamping pod- E

glamping pod- E

tree house

tree house

Structure

The entire structure is made of Light Gauge Steel technology from Australia using the latest CNC controlled machines. The entire structure is designed in special software, which results in high accuracy in production.

Waterproofing Membranes

The entire external surface of the cottage is covered with water proofing membranes and sealed with Aluminium tapes.

Doors & Windows

All internal doors including bedroom / bathrooms are made of Skin doors and solid wood door frame. Main entry door and , Sliding / fixed Windows made of UPVC white color with 5mm toughened glass and required hardwares. DGU, Mosquito mesh and other colors available at extra cost.

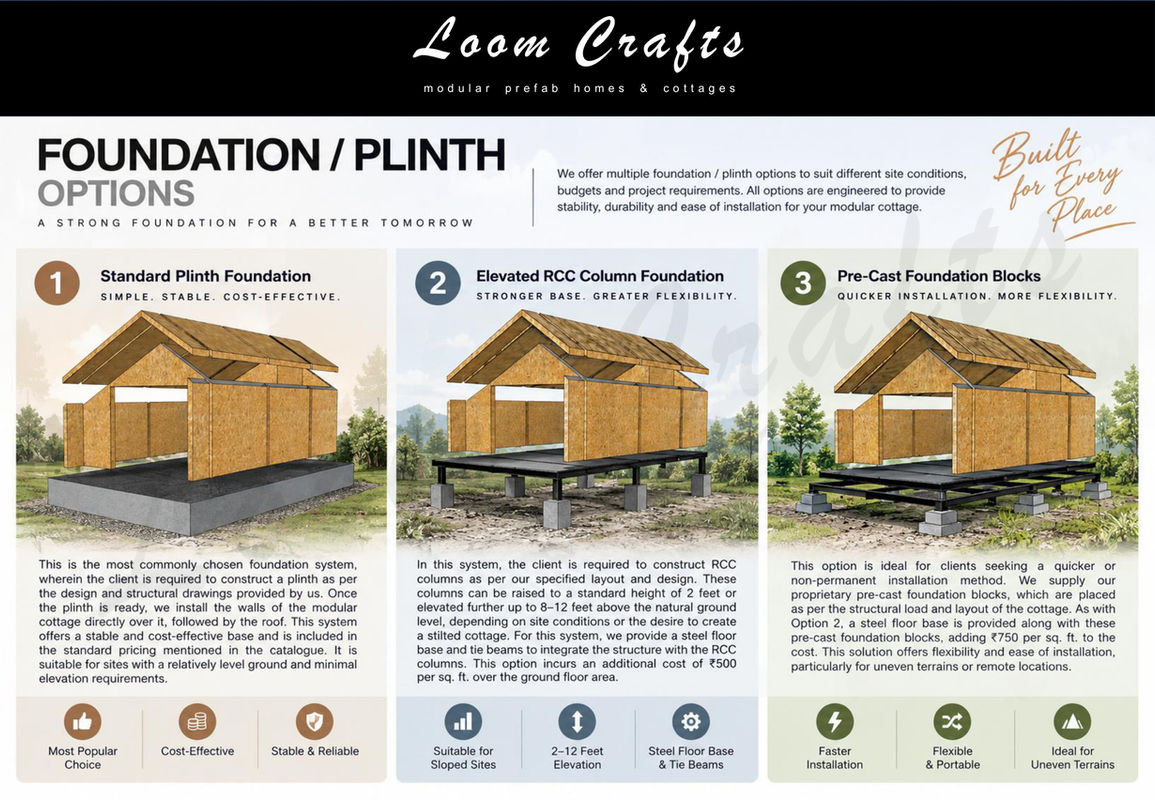

Foundations

Our homes & cottages comes with pre-casted RCC foundation blocks which are just placed over the ground and steel tubular pipes are hammered inside the ground diagonally. Plinth top level considered as +600mm from NGL. The client needs to make sure that the soil is solid with no filled up soil and no water logging.

Internal Walls & Ceiling

All the internal walls are plain painted as per clients choice of color & ceilings are cladded with German Pine panels, which are coated with special oils for longer durability. Option for pine wood cladding on walls also available at extra cost.

Plumbing & Toilet Fixtures

The toilet in the cottage comes complete with all internal pipelines of CPVC or UPVC along with toilet fixtures from Jaguar such as WC, Washbasin, Faucet etc. The toilet is fitted with pressure pumps, which is included in the price. The client just needs to connect the water input and waste output at site once the cottage erection is completed.

Structural Wrapping

The entire steel structure is then wrapped with OSB (Oriented Stranded Boards), which is imported from Europe. These boards are lightweight but very strong, water & termite resistant.

External Walls & Roof

The External walls are cladded with Natural Thermo Pine Wood or Powder Coated steel cladding depending on the design of the cottage. The roof is also cladded with powder coated steel panels, which can last up to 25 years in outdoor weathers or Asphalt shingles of make Saint Gobain as per clients choice of color (Subject to availability).

Electrical Fittings

Complete electrical fittings including Switches, Sockets, Fans, LED lights etc of make Schneider and Jaquar. Electronics such as TV, AC, Geysers not included and can be fitted by clients themselves. We do air-conditioning pipeline as per the layouts.

Insulation

The Walls and Roof are well insulated with Rock Wool of thickness 100mm and density of 48kg/m3, which gives the structure protection from Heat, Cold and sound.

Internal & External Flooring

The floors are fixed with heavy-duty cement fiberboards. After which, Common Living room & Bedrooms are fixed with Laminate flooring of make Green Panel that the customer can choose from our standard catalogs. Toilets and Kitchen are fixed with vitrified tiles of make Kajaria or similar. External decks are fitted with Thermo pine wood coated with weatherproof oils.

Furniture & Soft Furnishings

No other loose / fixed furniture, soft furnishings or decorations included but are available at extra cost from Loom Crafts. Bathroom vanities included in all bathrooms. Kitchen and Wardrobes available at extra cost.
